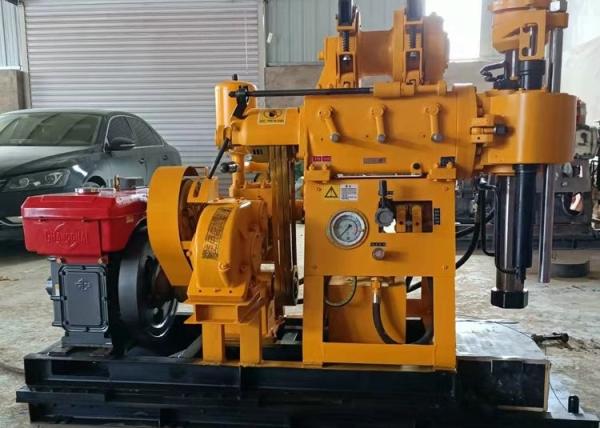

Gk 200 Soil Testing Drilling Rig Customized 42mm Diameter

Name: Gk 200 Soil Testing Drilling Rig Customized 42mm Diameter
Brand: ShiTan
Price: 1 USD

Wholesale Gk 200 Soil Testing Drilling Rig Customized 42mm Diameter from china suppliers

Brand Name : ShiTan

Model Number : GK 200

Certification : ISO SGS, ISO, ISO9001

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 20000 set/year

Delivery Time : Within 5 days

Packaging Details : Standard Export package

Product name : Gk 200 Customized Exploration Drilling Rig Soil Testing Drilling Machine

Warranty : 1 Year

Drilling Hole Diameter : Customized

Drilling depth : 200 Meters

Dimension(L*W*H) : 1180×680×1600mm

Drill pipe diameter : 42mm

Condition : New

Weight : 200KG

Power Type : Diesel

Color : Yellow,Red

Packing : Wooden Box

Contact Now

Gk 200 Customized Exploration Drilling Rig Soil Testing Drilling Machine

Gk 200 Soil Testing Drilling Machine Introduction:

Gk200 drilling rig is designed by adding mud pump based on xy-1a drilling rig according to customer feedback. It is a high-speed portable drilling rig fed by hydraulic pressure.

Gk 200 Soil Testing Drilling Machine Tech Details:

Drilling depth		200m
Max open hole caliber		300mm
End hole caliber		75mm
Drilling Rod diameter		60mm
Drilling angle		90°~75°
Drill rig moving stroke		300mm
Power Engine		Diesel engine 22HP
Spindle speed		64 128 287 557 r/min
Spindle stroke		450mm
Max.Single line lifting capacity		2400kg
Max.Single line lifting speed		0.41 0.82 1.64m/s
Wirerope caliber		13mm
Mud pump detail		Diesel 170L/min
Work pressure		1.5Mpa
Water inlet pipe diameter		40mm
Water outlet pipe diameter		30mm

Gk 200 Soil Testing Drilling Machine Features:

1. The drill adopts mechanical transmission, with simple structure and easy maintenance and operation.

2. The drilling rig is equipped with water brake device, which can control the tripping speed, reduce the wear of drum, brake belt and other parts, the impact force of lifting and tripping.

3. Technical improvement is made on the original drilling rig. The shaft diameter device is added in the clutch part to enhance the power of the driving shaft, and the gear in the gearbox of the drilling rig is also improved in material and technology on the original basis.

4. It is applicable to deep hole drilling projects such as coalfield geology, hydrogeology, metal deposits, non-metal deposits and natural gas, with strong practicability, operability and universality. It can meet the process requirements of diamond drilling, cemented carbide drilling

5. The drilling rig can be equipped with motor or diesel engine for users to choose according to the operating environment or conditions.

Gk 200 Soil Testing Drilling Machine Applications:

It is mainly used for geological and mineral exploration holes, coalfield exploration holes and oil exploration holes with vertical and inclination within 45 °, and can also be used for water source and other similar engineering drilling holes. It is also used for geological core exploration, including coal field, petroleum, metallurgy, minerals, geology, hydrology, nonferrous metals and nuclear industry
