Hydraulic Core Drilling Machine / Mining Exploration Drill Rigs GK200

Name: Hydraulic Core Drilling Machine Mining Exploration Drill Rigs GK200
Brand: ShiTan
Price: 1 USD

Wholesale Hydraulic Core Drilling Machine / Mining Exploration Drill Rigs GK200 from china suppliers

Model Number : GK200

Certification : ISO9001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, T/T, Western Union

Supply Ability : 2000set/year

Delivery Time : Within 7-12 days

Packaging Details : Standard Export package

Brand Name : ShiTan

Drilling diameter : 300mm

Drilling depth : 200m

Application : water well drill

Usage : mining exploration

Power Type : Electric

Drilling angle : 90-75

Contact Now

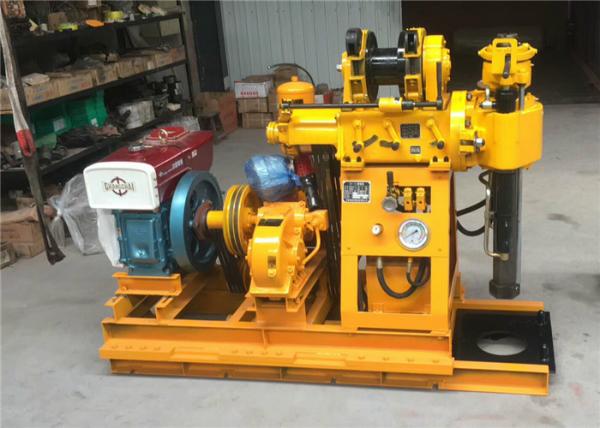

Hydraulic Core Drilling Machine / Mining Exploration Drill Rigs GK200

Product Description

1. water well drilling machine has a hydraulic automatic feed mechanism, improve drilling efficiency,reduce manual labor workers.

2. Card holder mechanism instead of using the ball chuck, can implement non-stop down the lever,easy to operate, safe and reliable.

3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.

4 The handle centralized, easy to operate.

5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.

Main Features

1. Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.

2. With hydro-automatic feeding device, and high drilling efficiency.

3. Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.

4. Close levers, convenient to operate, safe and reliable operations.

5. Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.

6. Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.

Parameter of Factory price hydraulic water well drilling machine

Drilling depth		200m
Maximum open hole caliber		300mm
End hole caliber		75mm
Drill rod caliber		60mm
Drilling angle		90°~75°
Drill weight (No include power)		525kg
Unity machine dimensions		1433×697×1273m
Spindle
spindle speed		71 142 310 620r/min
Spindle stroke		450mm
Winch
Max.single line hoisting capacity		15KN
Single line lifting speed		0.41,0.82,1.64m/s
steel wire rope caliber		13m(35m)
Mud pump
Type	Horizontal single urn twin-action
Displacement	170/150L/min(diesel or electromotor)
Diesle engine	16.2kw 2200r/min
Electric motor	11kw 1440r/min
